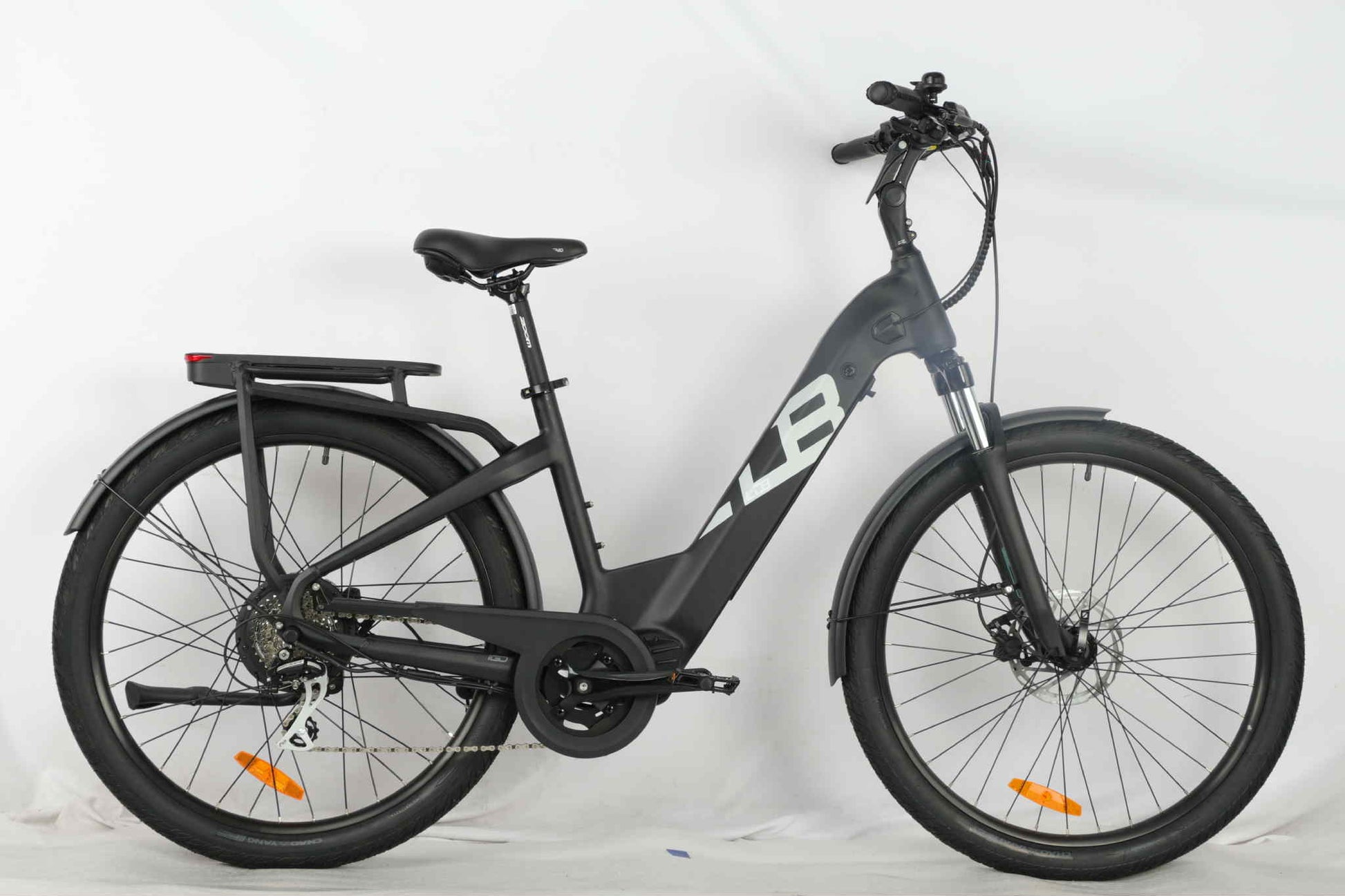

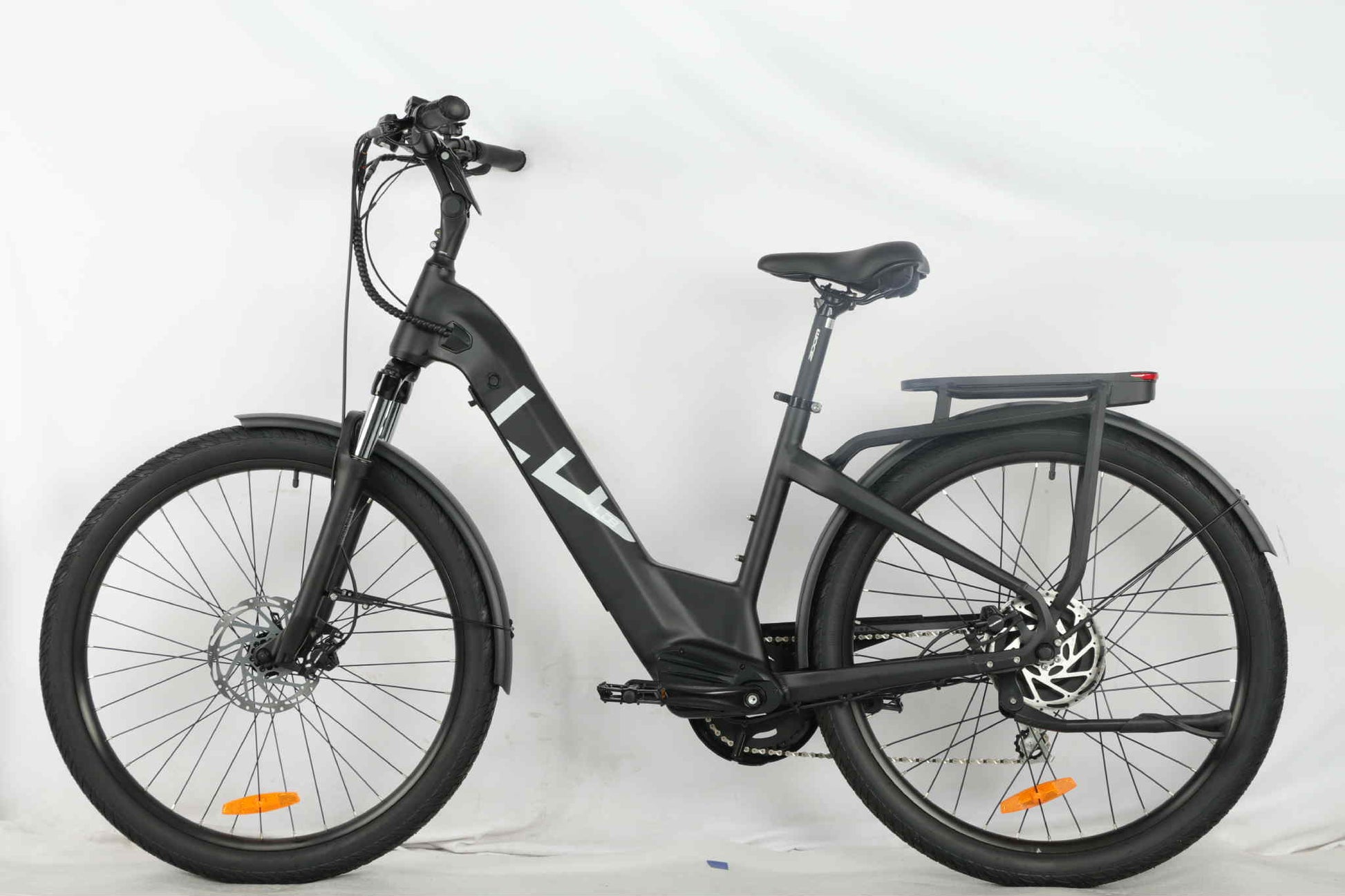

LDB DISCOVERY-YORVILLE X2

FRAMESET:
FRAME: Hydroformed Alloy, 27.5 Hybrid ERGOFIT frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack
COLOR: Black
FORK: RST VOLANT 700C, 80mm travel, lockout

DRIVETRAIN
SHIFTERS: SHIMANO ALTUS 8-speed
CHAINRINGS: 42T with Narrow Wide teeth
CHAIN: KMC E8-S
REAR DERAILLEUR: SHIMANO ACERA 8-speed
CASSETTE: SHIMANO ACERA 8-speed 11-32T

COMPONENTS
HANDLEBAR: 640mm, 16mm rise, 31.8mm dia.
GRIPS: VELO, Ergonomic, 135mm
STEM: Toolless adjustable threadless with 0 to 90 degree rise
SEATPOST: 31.6mm (350mm)
SADDLE: SELLE ROYAL Rio
BRAKE LEVERS: TEKTRO HDE350 with power cut off switch
BRAKE CALIPERS: TEKTRO HDE350 Hydraulic Disc
ROTORS: 180mm

WHEELS
TIRES: CHAOYANG 27.5”x2.4”
RIMS: 27.5”, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY

DISPLAY UNIT: 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist
MOTOR: ANNADA LE 500W geared rear hub motor, 48V
TORQUE: up to 55Nm
BATTERY: 5000mAh SAMSUNG cell, removable with security lock (48V | 15Ah | 720Wh)
RANGE: 110km (69mi) *
POWER ASSIST SYSTEM: Eco/Tour/Sport/Turbo/Boost color coded per PAS level
THROTTLE: On-Demand, Removable
SENSOR: Electronic 32 pulse Cadence Sensor integrated into the bottom bracket
CLASS: Class2 / Class1 optional / Class3 capable where permitted **

OTHER
ACCESSORIES (INCLUDED): Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger
BIKE WEIGHT (without battery): 25.7kg (56.7 lbs)
WEIGHT CAPACITY: 125kg (275 lbs)
BATTERY WEIGHT: 3.5kg (7.7 lbs)
